    Forged Large Shaft Machining Carbon Steel Anodized Transmission Spline

    Ask Lasest Price
    Brand Name : Ti
    Model Number : Ti08
    Certification : ISO9001
    Price : USD1-1000/pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000sets/months
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Forged Large Shaft Machining Carbon Steel Anodized Transmission Spline

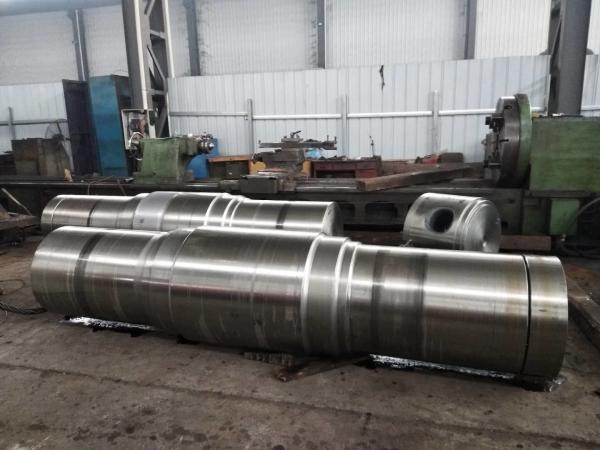

    Carbon Steel Forged Large Equipment Transmission Spline Shaft


    There are many types of shaft materials, and the selection is mainly based on the shaft strength, stiffness, wear resistance and other requirements, as well as the heat treatment method used to achieve these requirements, while taking into account the manufacturing process to be selected, and strive to economic and reasonable.
    The common materials for shafts are high-quality carbon steels 35, 45, and 50. The most commonly used steels are 45 and 40Cr steels. For shafts with smaller loads, ordinary carbon steels such as Q235 or Q275 are also commonly used. For the shafts that require greater force, shaft size and weight are limited, and there are certain special requirements, alloy steel can be used, commonly used 40Cr, 40MnB, 40CrNi and so on. The material of the shaft is mainly carbon steel and alloy steel. Most of the steel shaft blanks use rolled steel and forgings, while others use direct round steel.
    Ductile cast iron and some high-strength cast irons are easy to cast into complex shapes due to their good casting properties, as well as good vibration damping performance. Low sensitivity to stress concentration, the impact of the fulcrum displacement is small. Therefore, it is often used to manufacture complex-shaped shafts.
    MACHINING PROCESSESMilling
    Drilling
    Boring
    Turning
    – Contour Turning
    – Form Turning
    – Taper Turning
    – Straight Turning
    Threading
    – External
    – Internal
    Tapping
    Thread Milling
    Internal Forming
    Counterboring
    Countersinking
    Pocketing
    Profiling
    Reaming
    Facing
    Parting/Cutting
    EQUIPMENTVertical Machining Center
    Horizontal Machining Center
    Lathe
    EQUIPMENT CAPABILITIESCNC Control Capabilities
    Large Swing Lathe
    CAD Design Services
    Reverse Engineering
    FIXTURINGThree-jaw Chuck
    Four-jaw chuck
    Custom Fixtures
    Wide Variety of Set-up and Fixturing equipment
    MATERIALSSteel
    Stainless Steel
    Aluminum
    Alloy Steel
    Brass
    Bronze
    Copper
    Nickel
    Titanium
    Inconel
    Monel
    Hastelloy
    High Comp
    Wearable
    Polyamide
    Chrome
    Moly Steel
    TURNING DIAMETERUp to 72 in
    TURNING LENGTHUp to 433 in
    MILLING LENGTHUp to 394 in
    MILLING WIDTHUp to 138 in
    MILLING HEIGHTUp to 84 in
    MAXIMUM LIFTING CAPACITY40 tons
    SECONDARY SERVICES OFFEREDPress Work (500 tons)
    Repair Warranty
    Transportation
    Assembly
    Fabrication
    Weld Build-Up
    PRODUCTION VOLUMEPrototype to Medium Volume

    Product Range


    large parts machining

    complex parts machining

    CNC parts machining

    stamping parts machining


    steel fabrication


    About Us

    • 15+ years experience of integral machining solutions.
    • all range of equipment.
    • Specialize in the machining of large, precision, complex shaped Component and all kinds of metal,such as steel,stainless steel,alloy aluminium etc.
    • If you can Draw it,we can machining it!

    The applications we serve include, but are not limited to:

    • Automation
    • Food processing machines
    • Oil/pipeline equipment
    • Printing equipment
    • Packaging machinery
    • Conveying bulk processing
    • Steel processing
    • Fluid power industry
    • Plastic processing machines
    • Construction equipment
